The HI-LEVEL mixers are not only for DJ's, but also fine for fixed installations in the ELA area, rental companies, radio stations, sport centers, catering, trade or leisure business, where fast understanding and operation by everyone is necessary.
Quality assurance: a small team inserts selected components into the printed circuit boards by hand and than checks them with a Computerised Circuit Analyzer. The pcbs run through a soldering bath and are resoldered after visual inspection, if necessary. After measuring each single pcb the mixers are assembled and sound tested on large studio monitors while the metal case is still open. The mixers will be closed then and measured for a last time and then packed. Now they are ready for their trip around the world.
HI-LEVEL PM2000
High quality 2-channel-mixer with 6 inputs and 2 separately adjustable, symmetrical outputs on XLR. Applicable also as a Standby mixer as back-up device in larger clubs.

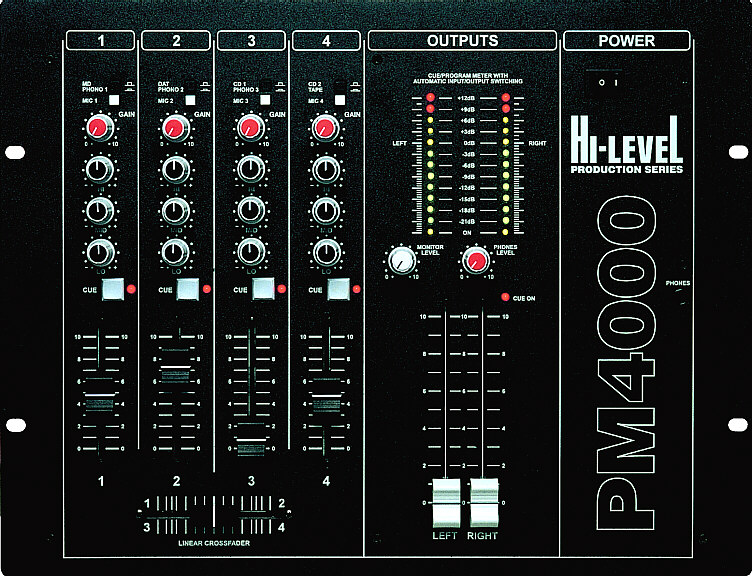

HI-LEVEL PM4000
One of the best-selling
4-channel mixers ever: 12 inputs (3x Phono, 4x XLR Mic, 5x LINE) and 2
separately adjustable, symmetrical outputs on XLR sockets and 6.3mm Jack.
Aluminium eloxal front panel.

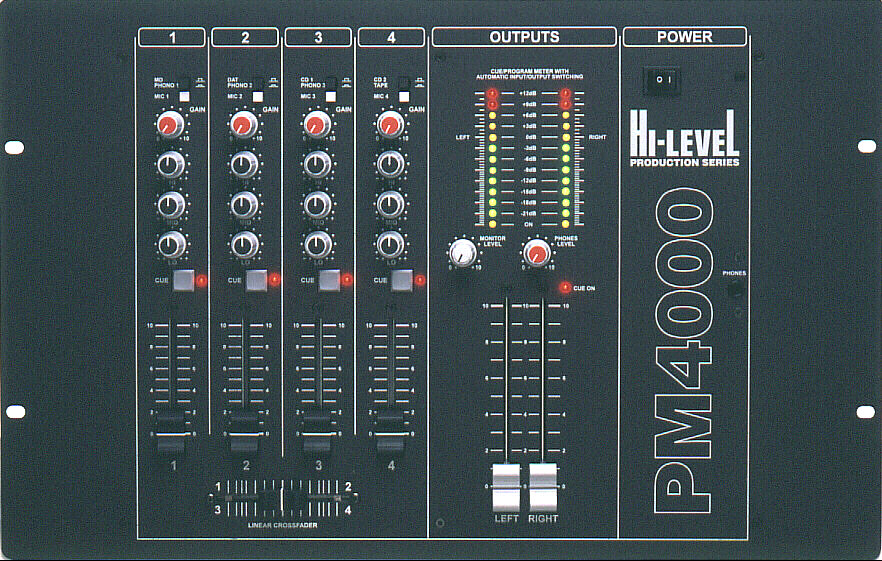

HI-LEVEL PM4000-19
PM4000 with 19"
front panel. Aluminium
eloxal front panel.
HI-LEVEL PM5000
A great House Music mixer with 5 channels, 5x (Line/Line/Mic) = 15 inputs and 3 (factory standard) modular phono RIAA preamp cards with Radio Station quality. Quality ALPS rotary potentiometers with large professional 29mm SIFAM rotary knobs. Gold plated connectors throughout. Insensitive, elegant teflon powder coated front panel. Large PFL-push buttons with ALPS switches. Brigded headphone output driving loads down 8 ohms (see specifications) with tremendous power which will destroy any headphone make. Crisp highs, smooth mids and unlimited, deep low end with special LF EQ circuit. Subsonic filter on Phono cards only.
The HI-LEVEL PM5000 is manufactured since 1996 and was the Worlds 1st Rotary Control club mixer with Gain + Triple EQ per channel + crossfader. Followed by companies like Rane, Crest, Numark, Vestax, Ecler, gemini, Pioneer, ... A collectors item of tomorrow!
Your Options: any kind/brand of conductive or carbon type rotary potentiometers from Penny & Giles, Koon, Clarostat/Honeywell, Noble, Bourns, ALPS, Ruf, etc. ; conductive plastic crossfader; without crossfader; crossfader between 2 channels only; up to 5 phono cards; transformer balanced outputs; ... We will custom build your PM5000!

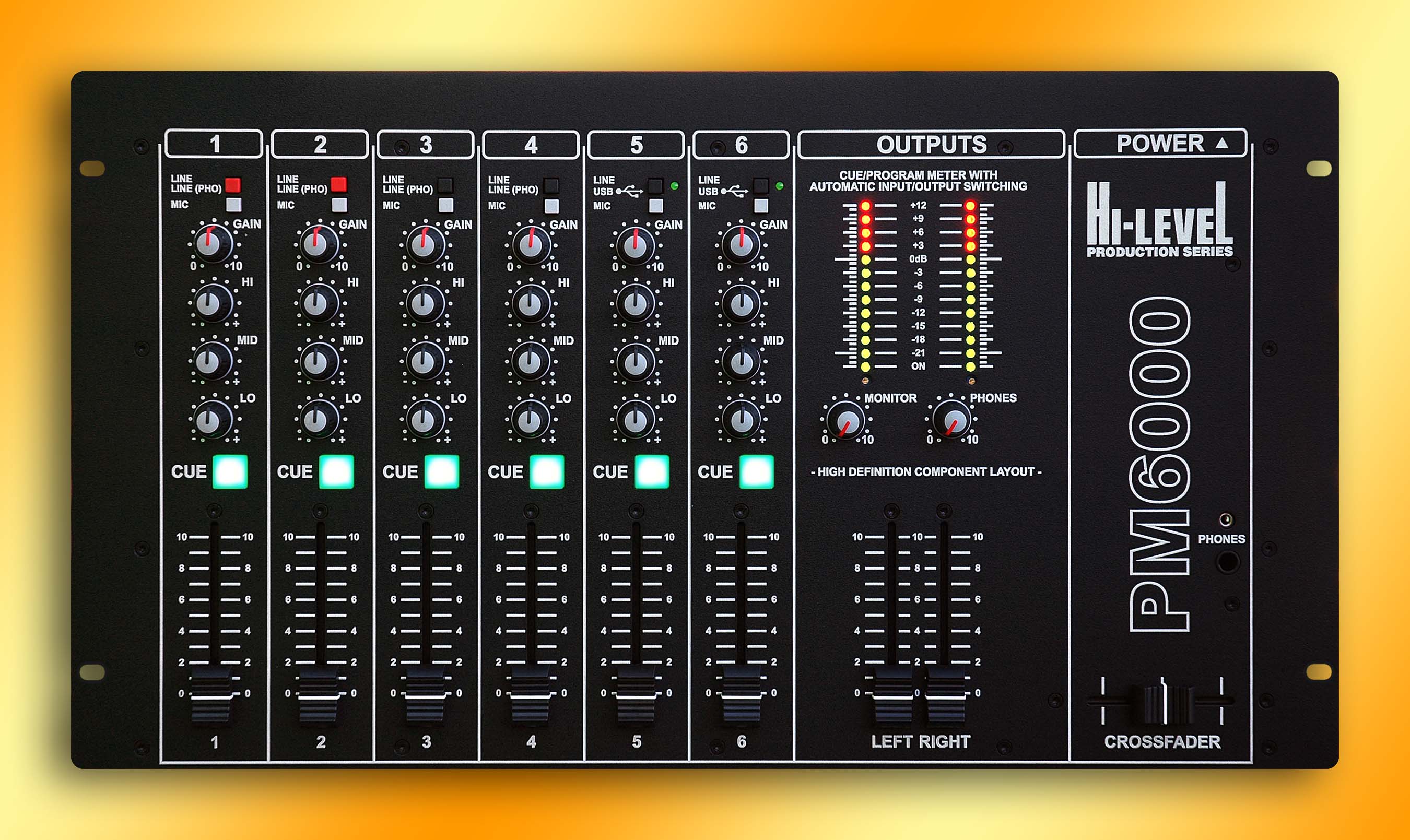

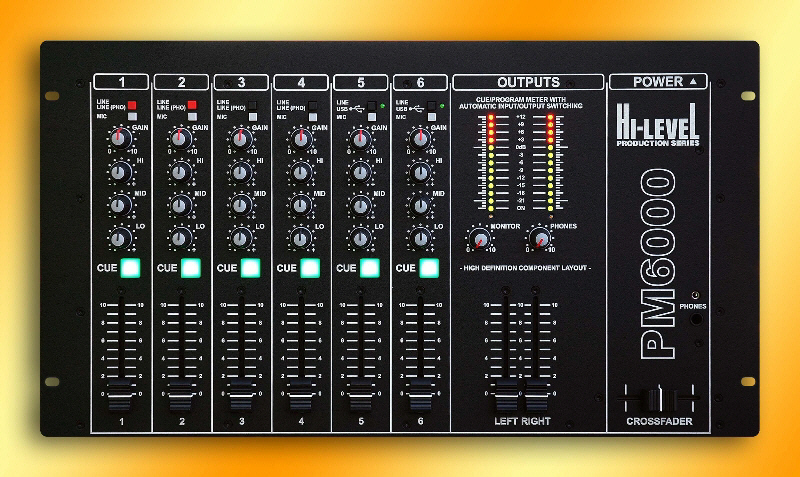

HI-LEVEL PM6000
A universal mixer with 6 channels, 18 inputs and 6 symmetrical XLR microphone
inputs. High-quality 60mm ALPS faders. All connectors gold plated. Since
October 1997 like all HI-LEVEL mixers special Long Life ALPS crossfaders.
Aluminium eloxal front panel, 2x Stereo XLR-Outputs.
HI-LEVEL PM8000
8-channel-multimixer with 100mm professional sliding controls. 24 inputs, 3 Phonos and 8 symmetrical XLR microphone inputs. Also available with K-ALPS sliding pots.
HI-LEVEL PM10000
A fully modular 10-channel audio mixer of the extra class. 100mm K-ALPS professional faders with faderstart option. A triple input stereo module is available which is switchable between Line/Line/Mic with an assignable crossfader or a double input mono module which is switchable between Line/Mic with automatic Talkover. The PM10000 has two AUX sends, 48V phantom voltage and electronic CUT buttons. Additionally it has an Subbass output as well as several zone outputs with variable adjustable! microphone/music proportion. On push of a button the DJ monitor output does the same as the comfortable headphone Premix mechanism. By this the DJ can comfortely mix without headphones in radio stations or closed DJ cabs. Like all HI-LEVEL mixers the PM10000 has a headphone output with at least 2x1 Watt.

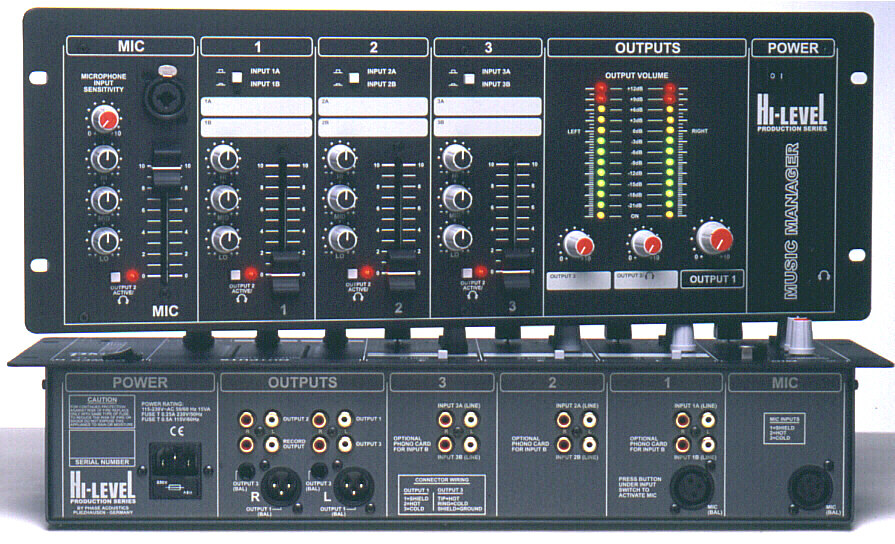

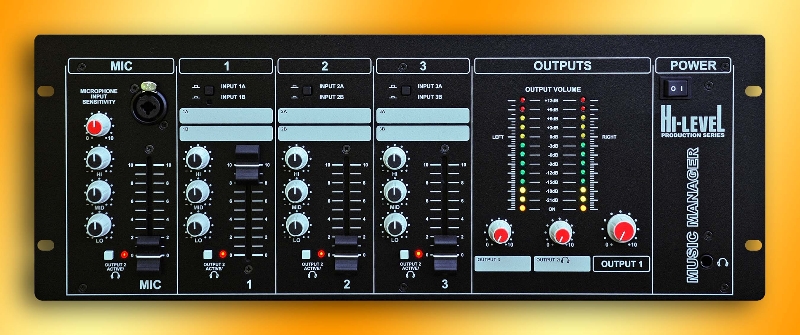

HI-LEVEL MUSIC MANAGER
A simple but highgrade, like all other HI-LEVEL mixers internally modular built compact mixer. With only 176mm (4RU) height it suits everywhere. There are 8 big fields to write on. 8 inputs and 3 separate Outputs are ideal for leisure industrie like bars and pubs and presentations. The Music Manager has 2 balanced microphone inputs with XLR and NEUTRIK Combo sockets and 6 Line inputs where 3 of them can be upgraded with RIAA preamp cards. All potentiometers are from ALPS as usual. The mixer was designed together with international Aerobic instructors and is available with an extra named frontpanel to go in fitness studios and dancing schools.
